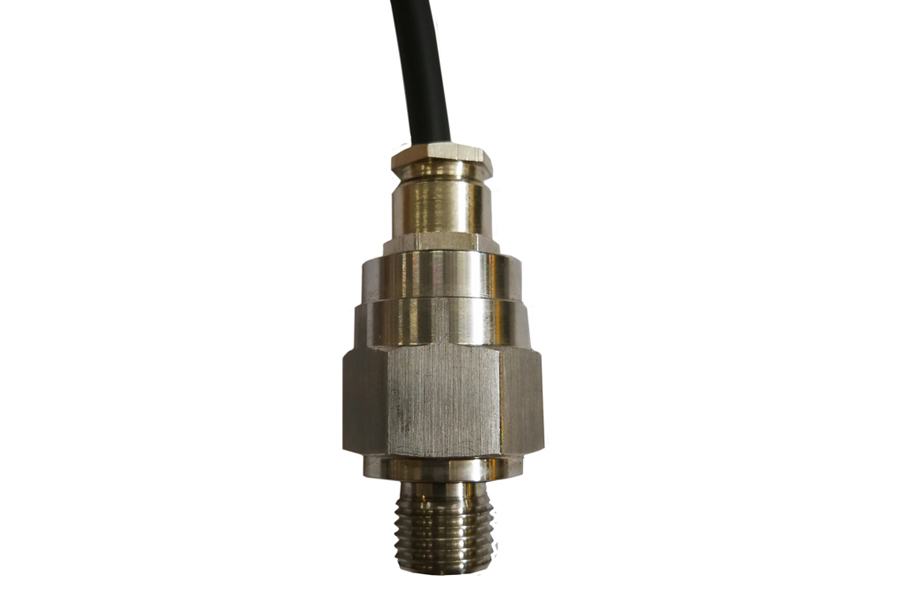

Series TR2
Series TR2
Working temperature: -20°C ÷ +80°C
Non linearity + hysteresis: < 1% of the end of scale at 20°C
Zero thermal drift: < 3% of the end of scale from 0°C to +70°C
Weight: 0,1 Kg
Mechanical life: 2x106 cycles at 20°C
Body: stainless steel AISI 316 with key 24mm, with wetted parts in stainless steel AISI 316, ceramic sensor and NBR seal
Hydraulic connection: threaded male with integral ISO seal
Details

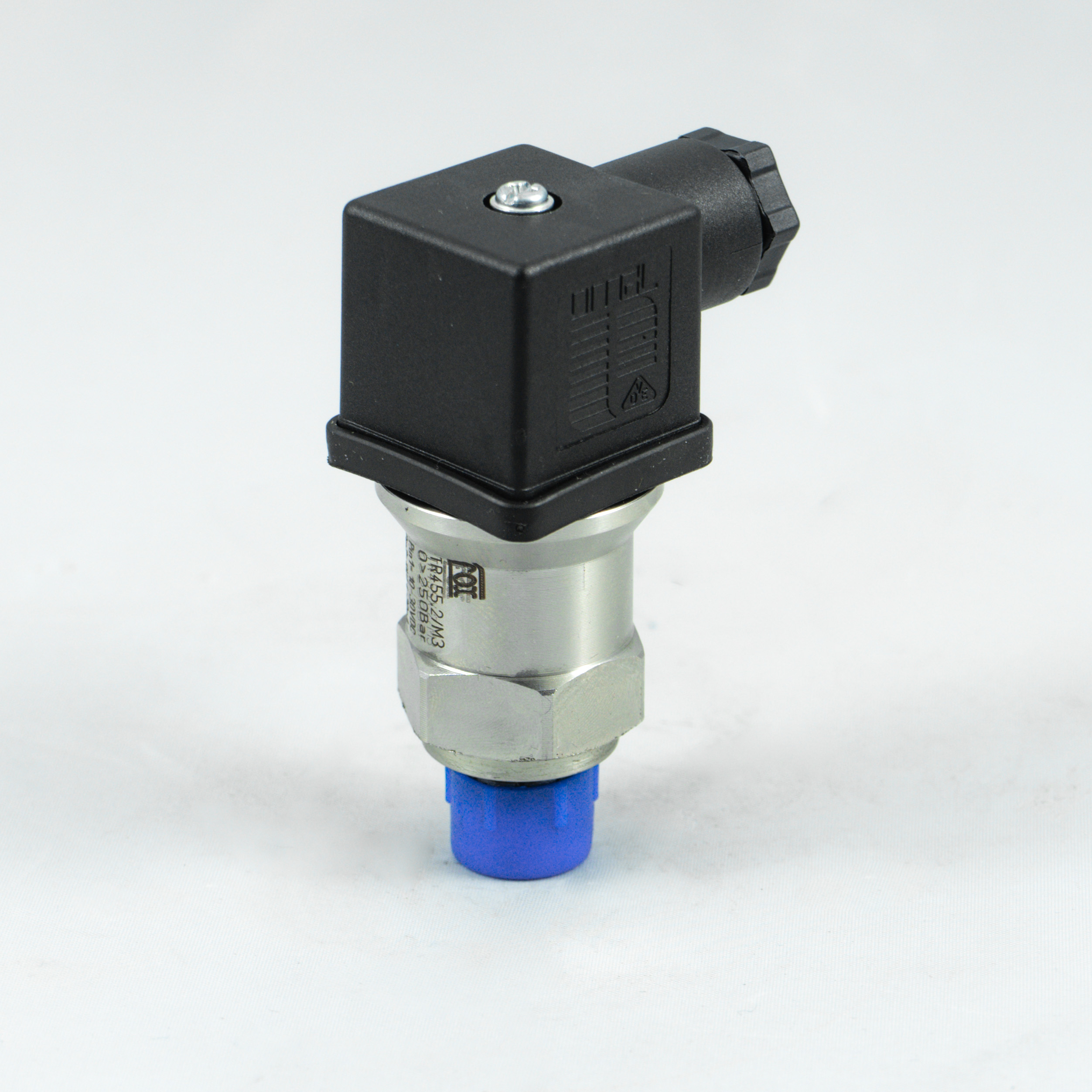

Series TR4
Series TR4
Details

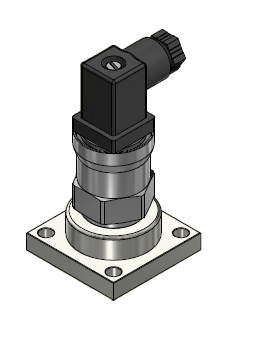

Series TR5
Series TR5
Technical features:
Working temperature: -20°C ÷ +80°C
Non linearity + hysteresis: < 1% of the end of scale at 20°C
Zero thermal drift: < 3% of the end of scale from 0°C to +70°C
Weight: 0,1 Kg
Mechanical life: 2x106 cycles at 20°C
Body: zinc plated steel and ceramic sensor with NBR seal
Hydraulic connection: threaded female or integral CETOP flange

Details
